High Pressure Thin Aluminum Strip 1050 O 0.3x40mm 0.5x40mm 0.9x55mm 0.9x90mm

Name: High Pressure Thin Aluminum Strip 1050 O 03x40mm 05x40mm 09x55mm 09x90mm
Brand: Henan Yongsheng
Price: 1 USD

Quality High Pressure Thin Aluminum Strip 1050 O 0.3x40mm 0.5x40mm 0.9x55mm 0.9x90mm wholesale

Brand Name : Henan Yongsheng

Model Number : 1050 Aluminum Strip

Certification : ISO, RoHS

Place of Origin : Zhengzhou Henan

MOQ : 1 ton

Price : FOB, CIF, CFR, CNF, etc.

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 tons per month

Delivery Time : 7-25 days after order confirmation

Packaging Details : Seaworthy Export Standard Wooden Box

Alloy : 1050

Product Name : High Pressure Thin Aluminum Strip 1050 O Temper

Temper : O-H112, etc

Thickness : 0.3mm, 0.5mm, 0.9mm

Width : 40mm, 55mm, 90mm

Electrical Conductivity : ≥58

Technical Requirements : Chamfering, deburring

Weight : ＜450KG

Contact Now

High Pressure Thin Aluminum Strip 1050 O 0.3x40mm 0.5x40mm 0.9x55mm 0.9x90mm

Product Description:

High Voltage Narrow Aluminum Strip 1050 O is a specific type of aluminum alloy material, mainly used in applications under high voltage environments.

Aluminum Alloy 1050:
1050 aluminum alloy is a pure aluminum alloy, and the aluminum content is usually above 99.5%. It has good electrical conductivity, thermal conductivity and corrosion resistance.
The strength of 1050 aluminum alloy is relatively low, but its ductility and formability are very good, suitable for various processing methods.
O temper (annealed):
O temper refers to the aluminum alloy after annealing, with softening and good ductility. In this state, the strength of aluminum is low, but the plasticity and toughness are high, and it is easy to process and form.

Characteristics
High conductivity: 1050 aluminum alloy has very good electrical conductivity and is suitable for electrical applications.
Excellent corrosion resistance: Due to its high aluminum content, 1050 alloy can effectively resist oxidation in many environments.
Good formability: In the O temper, aluminum strip is easy to process and form, suitable for the manufacture of complex shapes.
Lightweight: The lightweight characteristics of aluminum allow the material to reduce weight in high-voltage applications.

Applications

Electrical industry: Due to its excellent conductivity, 1050 O aluminum strip is widely used in cables, wires and other electrical components.
Pressure vessels: Suitable for manufacturing storage and transportation containers for high-pressure gases or liquids.
Construction industry: Used for supporting and connecting parts in building structures, especially where high conductivity is required.
Automobile and aerospace: Used for lightweight design and structural components with high strength requirements.

Technical Parameters:

Alloy	Temper	Thickness(mm)	Tensile Strength(Mpa)	The Yield Strength (Mpa)	Elongation(%)	Hardness(HV)
1060 (1050)	0	>0.2-0.5	60-100	≥15	≥20	20-30
		>0.5-1.0			≥30
		>1.0-4.0			≥35
	H22	>0.2-0.5	80-120	≥60	≥12	30-40
		>0.5-1.0			≥15
		>1.0-4.0			≥18
	H24	>0.2-0.5	95-135	≥70	≥6	35-45
		>0.5-1.0			≥8
		>1.0-4.0			≥10
	H26	>0.2-0.5	110-155	≥75	≥2	43-55
		>0.5-1.0			≥4
		>1.0-4.0			≥6
	H18	>0.2-0.5	≥125	≥85	≥2	50-65
		>0.5-1.0			≥3
		>1.0-4.0			≥4

Alloy/Grade	1000, 3000, 5000, 6000, 8000 Series
Temper	O-H112,T3-T8,T351-T851
Thickness	0.1mm-6.5mm
Width	3mm-2600mm
Length	As customer's requirement
Application	Industry,Decoration,Building,Packing,Pressing,Etc.
Surface treatment	Mill Finish,Coated,Powder Coated,Anodized,Polished mirror,Embossed,Etc.
Tolerances	As customer's requirement
Delivery time	7-25 days after order confirmation
MOQ	1 ton
Loading Port	Qingdao Port, Tianjin Port, Shanghai port.
Coil ID	As customer's requirement
Price terms	FOB, CIF, CFR, CNF, etc.
Payment terms	L/C, D/A, D/P,T/T , West Union, Money Gram, Etc.
Standards	ASTM-B209,EN573-1,GB/T3880.1-2006
Certificate	ISO, RoHS
Special Specification is available on customer ’ s requirement

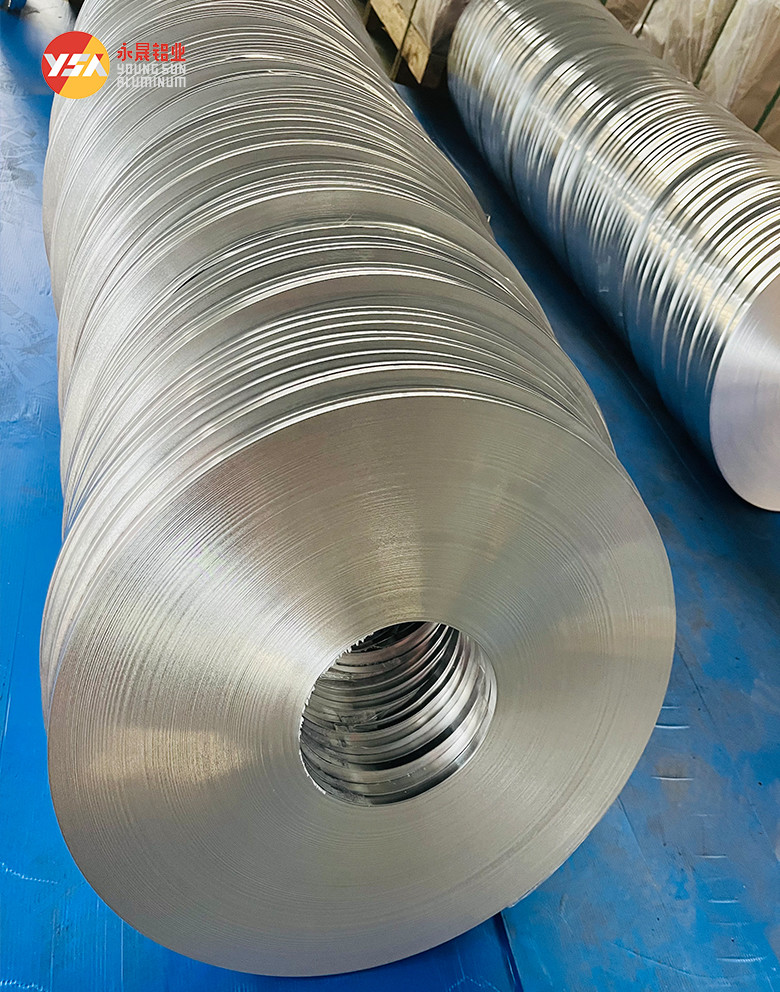

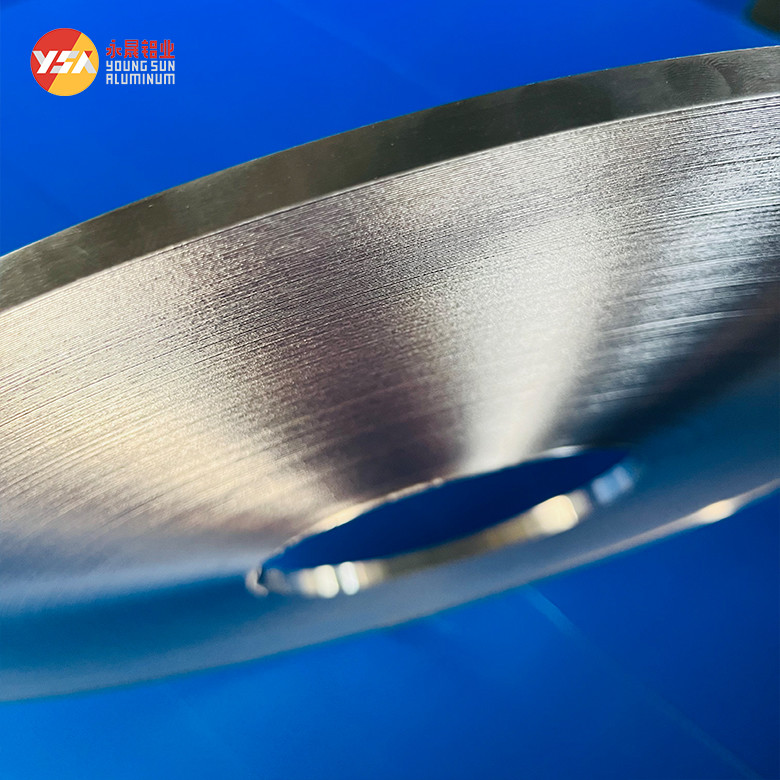

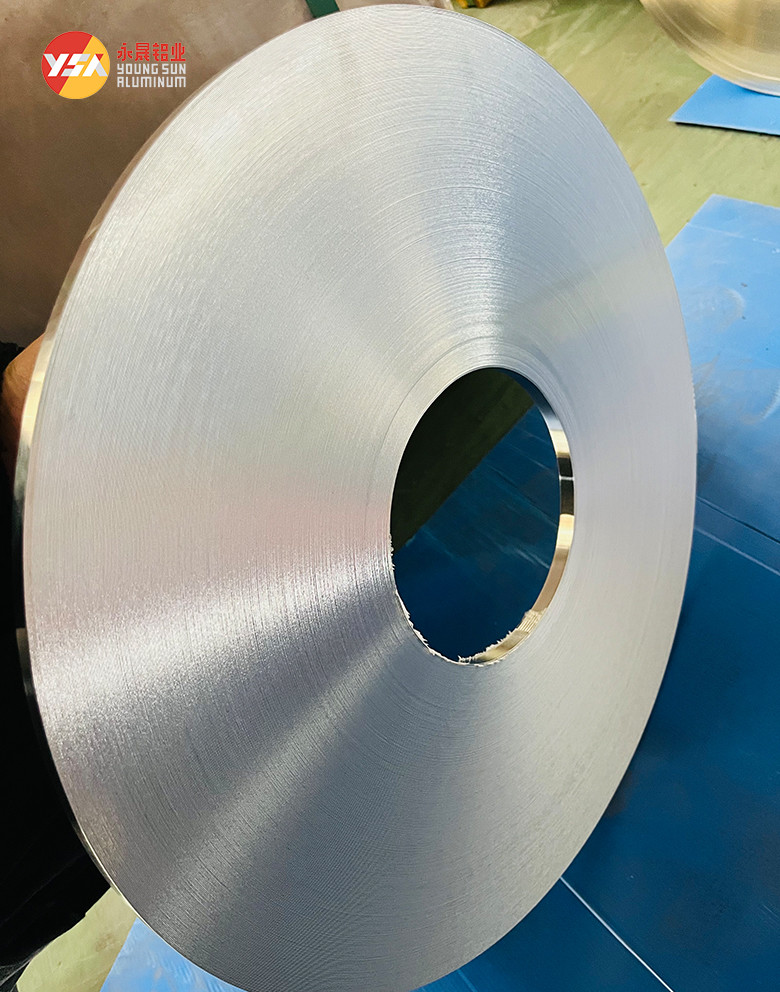

Product Show:

High Pressure Thin Aluminum Strip 1050 O 0.3x40mm 0.5x40mm 0.9x55mm 0.9x90mm
